Plant/Algal cell antibodies / Physcomitrella patens

product information

Arabidopsis thaliana auxin efflux carrier component AtPIN2 encoded by the AtPIN2 gene (also known as EIR1 and AGR1). AtPIN proteins are asymmetrically localized within plant plasma membranes and mediate polar auxin transport. AtPIN2 is a key regulator of the response of Arabidopsis roots to gravity.

KLH-conjugated mixture of two synthetic peptides derived from AtPIN2 sequence At5g57090

Store lyophilized/reconstituted at -20°C; for reconstitution add 100 µl deionized water and glycerol to a final of 50% (v/v) and store at -20°C for up to a year. Please, remember to spin tubes briefly prior to opening them to avoid any losses that might occur from lyophilized material adhering to the cap or sides of the tubes.

immunocytochemistry (ICC), western blot (WB) only on the isolated first micrometer of the toot tip from seedlings

AS06 193 | anti-auxin rabbit antibody

This antibody will only work in western blot if the isolated first micrometers of the root tip from seedlings is used. This is the place where PIN2 protein is most strongly expressed Willige et al. 2011.

And the antibody also works with the whole root extracts when the microsomal membrane fractions are used for western blotting. Latter will eliminate the cross reacting bands.

application information

1 : 300 - 1: 600 (ICC)

69 kDa

Arabidopsis thaliana

dicots including: Medicago truncatula, Pisum sativum, Vitis viniferamonocots including: Oryza sativa, Triticum aestivum, Zea mays; Populus tremula x Populus tremuloides; moss: Physcomitrella patens

no confirmed exceptions from predicted reactivity known in the moment

5% normal donkey serum (Jackson ImmunoResearch, West Grove, PA) in MTSB was used for blocking and the secondary antibody was donkey anti-chicken TRITC-coupled 1:250 (Jackson ImmunoResearch). Specific PIN2 signal in epidermis, lateral root cap and cortex cells. Cross reaction with another (PIN) protein in the QC and first columella layers in the in the (Men et al. 2008, Nat. Cell Biol. 10, Suppl. Information).

Willige et al (2011). Gibberellin Regulates PIN-FORMED Abundance and Is Required for Auxin Transport-Dependent Growth and Development in Arabidopsis thaliana. Plant Cell. (6):2184-95.

Men et al. (2008). Sterol-dependent endocytosis mediates post-cytokinetic acquisition of PIN2 auxin efflux carrier polarity. Nature Cell Biology. 10, 237-244.

application example

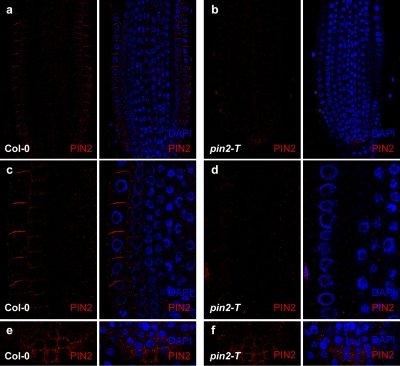

Specificity testing of affinity-purified chicken anti-AtPIN2 serum.
(a, b) Immunofluorescence labelling of chicken anti-AtPIN2 antibody (red) in an Arabidopsis wild-type
(Col-0) root tip (a) and a pin2-mutant (pin2-T) root tip (b). DAPI-stained nuclei, blue.
Note specific plasma-membrane labelling of lateral root cap, epidermis and cortical cells is
absent in the pin2-T mutant. (c, d) Close-up of (a) and (b), respectively. (e, f) Non-specific
signals in the quiescent centre and columella of both Col-0 (e) and pin2-T mutant (f).
