H+ATPase | Plasma membrane H+ATPase (100 ĩl)

AS07 260-100 | Clonality: Polyclonal | Host: Rabbit | Reactivity: [global antibody] for di- and monocots, conifers, ferns, mosses, green algae | cellular [compartment marker] for plasma membrane

H+ATPase | Plasma membrane H+ATPase (100 ĩl) in the group Antibodies for Plant/Algal  / Global Antibodies at Agrisera AB (Antibodies for research) (AS07 260-100)


407 €

Datasheet Product citations Add review

Product Information


KLH-conjugated synthetic peptide exposed to cytoplasm in H+ATPase model, derived from available di and monocot, fern, mosses and algal plasma membrane ATPase sequences including Arabidopsis thaliana ATPase 1 (UniProt: P20649, TAIR:At2g18960) and ATPase 2 (UniProt: P19456 , TAIR:At4g30190),3 (UniProt: P20431, TAIR:At5g57350),4 (UniProt: Q9SU58, TAIR:At3g47950),6 (UniProt: Q9SH76, TAIR:At2g07560),7 (UniProt: Q9LY32, TAIR:At3g60330),8 (UniProt: Q9M2A0, TAIR:At3g42640),9 (UniProt: Q42556, TAIR:At1g80660), 11 (UniProt: Q9LV11, TAIR:At5g62670) of Arabidopsis thaliana and hydrogen ATPase of Chlamydomonas reinhardtii (Q9FNS3)

Host Rabbit
Clonality Polyclonal
Purity Serum
Format Lyophilized
Quantity 2 x 50 µl
Reconstitution For reconstitution add 50 µl of sterile water to each tube.
Storage Store lyophilized/reconstituted at -20°C; once reconstituted make aliquots to avoid repeated freeze-thaw cycles. Please, remember to spin tubes briefly prior to opening them to avoid any losses that might occur from lyophilized material adhering to the cap or sides of the tubes. Do not Store this antibody in 4°C.
Tested applications Western blot (WB), Immunofluorescence (IF), Immunolocalization (IL)
Recommended dilution 1 : 600-1 : 1000 (IF), 1 : 100 (IL), 1 : 1000-1: 10 000 (WB)
Expected | apparent MW

95 kDa (Arabidopsis thaliana)


Confirmed reactivity Arabidopsis thaliana, Chlamydmonas reinhardtii Cucumis sativus, Cucurbita moschata, Glycine max (weak), Hordeum vulgare, Kandelia obovata, Lolium perenne, Lycopersicon esculentum, Marchantia polymorpha, Medicago truntata, Nicotiana tabacum, Noccaea caerulescens, Oryza sativa, Phalenopsis Sogo Yukidian cultivar V3, Picea abies, Populus tremula, Pteris vittata (fern), Ricinus communis, Spinacia oleracea, Zea mays
Predicted reactivity

Mesembruanthemum crystallinum, Solanum tuberosum;  including Avena sativa, Hordeum vulgare, conifers (Pinus thunbergii), Mosses (Physocomitrella patens), Algae (Dunaliella spp., Ostreococcus spp.), Saccharomyces cerevisiae

Not reactive in

Aspergillus niger

Application examples

Application examples

application example

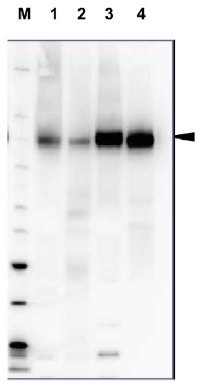

western blot using plant anti-H+ATPase antibodies

20 µg of total protein from Arabidopsis thaliana (1), Hordeum vulgare (2), Zea mays (3), Nicotiana tabaccum plasma membrane fraction, 2.5 µg (4), extracted with Protein Extration Buffer, PEB (AS08 300), were boiled for 10 min. in 70°C and separated on 4-12% NuPage (Invitrogen) LDS-PAGE and blotted 1h to PVDF. Blots were blocked immediately following transfer in 2% ECL Advance blocking reagent (GE Healthcare) in 20 mM Tris, 137 mM sodium chloride pH 7.6 with 0.1% (v/v) Tween-20 (TBS-T) for 1h at room temperature with agitation. Blots were incubated in the primary antibody at a dilution of 1: 5 000 for 1h at room temperature with agitation. The antibody solution was decanted and the blot was rinsed briefly twice, then washed once for 15 min and 3 times for 5 min in TBS-T at room temperature with agitation. Blots were incubated in secondary antibody (anti-rabbit IgG horse radish peroxidase conjugated, recommended secondary antibody AS09 602) diluted to 1:20 000 in 2% ECL Advance blocking solution for 1h at room temperature with agitation. The blots were washed as above and developed for 5 min with ECL Advance detection reagent according the manufacturers instructions. Images of the blots were obtained using a CCD imager (FluorSMax, Bio-Rad) and Quantity One software (Bio-Rad). Exposure time was 2 min.


immunolocalization using anti-H+ATPase polyclonal antibodies

Plasma membrane H+ATPase localization inArabidopsis thaliana roots.
Arabidopsis thaliana, elongation zone, H+ATPase (green). Arabidopsis thaliana roots were fixed in para-formaldehyde for 30 minutes. Tissue cleaning has been performed before immunolocalization. Anti-rabbit H+ATPase | plasma membrane primary antibody diluted in 1: 300 and anti-rabbit IgG secondary antibody conjugated with Alexa 555. Co-staining with DAPI visualized nucleus (blue color). Scale bar – 100 µm.

Courtesy Dr. Taras Pasternak, Freiburg University

Additional information

Additional information Cellular [compartment marker] for plasma membrane

This product can be sold containing ProClin if requested.
For additional Western blot detection image please refer to the article below.VERY IMPORTANT: please, do not heat up your samples over 70°C as this might cause H+ATPase to precipitate and there will be no signal on your western blot.

Related products

Related products

AS07 213 | anti-V-ATPase rabbit antibody

AS07 260PRE | H+ATPase | plasma membrane H+ATPase, pre-immune serum

AS13 2671 | H+ATPase plasma membrane H+ATPase (chicken antibody)

antibodies to membrane transport system

recommended secondary antibody



The Plasma Membrane H+ATPase is a family of proteins of ca. 100 kDa that are believed to be exclusive to the plasma membranes of plants and fungi. The protein is anchored within biological membrane which creates an electrochemical gradient used as an energy source and is essential for uptake of most metabolites and plant responses to environment, for example movement of leaves.

Product citations

Selected references Li et al. (2015). Three SAUR proteins SAUR76, SAUR77 and SAUR78 promote plant growth in Arabidopsis. Sci Rep. 2015 Jul 24;5:12477. doi: 10.1038/srep12477.
Kolb et al. (2015). FYVE1 is essential for vacuole biogenesis and intracellular trafficking in Arabidopsis thaliana. Plant Physiol. 2015 Feb 19. pii: pp.114.253377.
Hu et al. (2015). Re-examination of chlorophyllase function implies its involvement in defense against chewing herbivores. Plant Physiol. 2015 Jan 12. pii: pp.114.252023.
Komatsu et al. (2014). Phototropin Encoded by a Single-Copy Gene Mediates Chloroplast Photorelocation Movements in the Liverwort Marchantia polymorpha L. 1. Plant Physiol. 2014 Sep;166(1):411-27. doi: 10.1104/pp.114.245100. Epub 2014 Aug 5.
Berthier et al. (2014).Identification of a new sucrose transporter in rye-grass (LpSUT2): Effect of defoliation and putative fructose sensing. Plant Physiol & Biochem, vol: 84, Nov. 2014. (immunolocalization, leaf sheath)
Migocka et al. (2014). Molecular and biochemical properties of two P 1B2 -ATPases, CsHMA3 and CsHMA4, from cucumber. Plant Cell Environ. 2014 Sep 11. doi: 10.1111/pce.12447.
Shen et al. (2014). The fronds tonoplast quantitative proteomic analysis in arsenic hyperaccumulator Pteris vittata L. J Proteomics. 2014 Feb 4. pii: S1874-3919(14)00047-5. doi: 10.1016/j.jprot.2014.01.029.
Zhang et al. (2014). Arabidopsis ABCG14 protein controls the acropetal translocation of root-synthesized cytokinins. Nat Commun. 2014 Feb 11;5:3274. doi: 10.1038/ncomms4274.
Sobrino-Plata et al. (2014). Glutathione is a key antioxidant metabolite to cope with mercury and cadmium stress. Plant Soil, DOI 10.1007/s11104-013-2006-4.
