TIP1;1,TIP1;2 | tonoplast intrinistic protein1-1, 1-2 (gamma)

AS09 492 | Clonality: Polyclonal | Host: Rabbit | Reactivity: Arabidopsis thaliana, Raphanus sativus

TIP1;1,TIP1;2 | tonoplast intrinistic protein1-1, 1-2 (gamma) in the group Antibodies Plant/Algal  / Membrane Transport System / Vacuolar membrane at Agrisera AB (Antibodies for research) (AS09 492)
TIP1;1,TIP1;2 | tonoplast intrinistic protein1-1, 1-2 (gamma)


Buy 2 items of this product for 345.00 €/items
How to cite this product:
Product name, number (Agrisera, Sweden)

Data sheet Product citations Protocols Add review

Product Information


KLH-conjugated synthetic peptide conserved in Raphanus sativus TIP1;1 and TIP1;2 (protein accesion number available in Suga et al. (2001).

Host Rabbit
Clonality Polyclonal
Purity Serum
Format Lyophilized
Quantity 100 ĩl
Reconstitution For reconstitution add 100 ĩl of sterile water
Storage Store lyophilized/reconstituted at -20°C; make aliquots to avoid repeated freeze-thaw cycles. Please remember to spin the tubes briefly prior to opening them to avoid any losses that might occur from material adhering to the cap or sides of the tube.
Tested applications ELISA (ELISA), Western blot (WB)
Recommended dilution 1 : 8000 (ELISA), 1 : 1000 (WB)
Expected | apparent MW 25,8 | 23 kDa


Confirmed reactivity Arabidopsis thaliana, Raphanus sativus
Predicted reactivity Brassica napus
Species of your interest not listed? Contact us
Not reactive in No confirmed exceptions from predicted reactivity are currently known

Application examples

Application examples

Application example

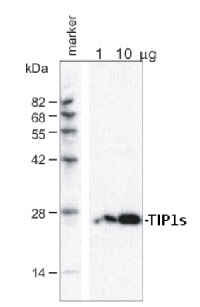

western blot using anti-TIP1s antibodies

1 µg and 10 µg of crude membrane fraction/lane from Arabidopsis thaliana  were separated on 12 % SDS-PAGE and blotted 1h to PVDF membrane (40 min. at 10 V using BioRad semidry transfer). Filters were blocked 1h with 5 % low-fat milk powder in TBS-T (0.05% Triton X.100). Membranes were washed 5 times with TBS-T, each time in a fresh polystyrene box and probed with anti-TIP1s antibodies (AS09 492, 1:1000, 1h) and secondary anti-rabbit (1:2000, 1 h). All steps were performed in RT with agitation.

Additional information

Additional information

0.1 % sodium azide is added as preservative. For antibody re-suspending information check the tube lable.

Antibodies will detect target protein in a few  µg of a crude preparation loaded per well. If purified preparations of vacuolar and plasma membranes are used, one µg load per well should be sufficient.

Protein or membrane sample should be treated at 70°C for 10 min before loading on the gel.

Diluted antibody solution can be used 2 to 3 times within one month if it  contains 0.1 % sodium azide as preservative and is stored at -20ºC to -80ºC.

Triton X-100 should not be included in the protein extraction buffer, when cell organelles or membrane proteins must be separated from soluble proteins. Because, Triton X breaks membrane structure and solubilizes most membranes proteins. Furthermore, it should be noted that Triton X at high concentrations binds SDS and mask the detergent effect of SDS for SDS-PAGE. Also, micelles of Triton X behave as a large complex with molecular mass of 90 kDa at high concentrations in SDS-PAGE.

Related products

Related products

collection of antibodies to tonoplast proteins

AS09 482 | Anti-AtTIP1;1 | gamma TIP, rabbit antibodies

AS09 493 | Anti-TIP1;1, TIP1;2 | tonoplast intrinistic protein 1-1, 1-2 (gamma), rabbit antibodies

AS09 494 | Anti-TIP2;1 (delta) | Delta-VM23, rabbit antibodies

AS09 510 | Anti-TIP2;1 | tonoplast intrinistic protein 2-1, rabbit antibodies

AS09 511 | Anti-TIP2;2 | tonoplast intrinistic protein 2-2 (C-terminal), rabbit antibodies

Plant protein extraction buffer

Secondary antibodies



TIPs belong to MIP/aquaporin protein family.
Alternative names: gamma-tonoplast intrinsic protein, gamma-TIP, aquaporin TIP, tonoplast intrinsic protein, root-specific RB7, gamma-tonoplast intrinsic protein 2, gamma-TIP2, salt stress-induced tonoplast intrinsic protein

Product citations

Selected references Tailor & Bhatla (2021) Polyamine homeostasis modulates plasma membrane- and tonoplast-associated aquaporin expression in etiolated salt-stressed sunflower (Helianthus annuus L.) seedlings. Protoplasma. 2021 Jan 6. doi: 10.1007/s00709-020-01589-8. Epub ahead of print. PMID: 33404919.
Suga et al. (2001). Specificity of the accumulation of mRNAs and proteins of the plasma membrane and tonoplast aquaporins in radish organs. Planta 212:294-304.
