Delta-VPE | Vacuolar-processing enzyme delta-isozyme

AS20 4408 | Clonality: Polyclonal  |  Host: Rabbit |  Reactivity: Arabidopsis thaliana
Delta-VPE | Vacuolar-processing enzyme delta-isozyme in the group Antibodies Plant/Algal  / Membrane Transport System / Vacuolar membrane at Agrisera AB (Antibodies for research) (AS20 4408)
Delta-VPE | Vacuolar-processing enzyme delta-isozyme


How to cite this product:
Product name, number (Agrisera, Sweden)

Data sheet Product citations Protocols Add review

Product Information

Immunogen Recombinant, His6-tagged, delta-VPE from Arabidopsis thaliana, UniProt: Q9LJX8, TAIR: At3g20210
Host Rabbit
Clonality Polyclonal
Purity Total IgG. Protein A purified in PBS, 50% glycerol. Filter sterilized.
Format Liquid at 2 mg/ml.
Quantity 100 ĩg
Storage Store at -20°C; once reconstituted make aliquots to avoid repeated freeze-thaw cycles. Please remember to spin the tubes briefly prior to opening them to avoid any losses that might occur from material adhering to the cap or sides of the tube.
Tested applications Immunofluorescence (IF), Immunolocalisation (IL), Western blot (WB)
Recommended dilution 1: 500 (IF), 1: 5000 (IL), 1: 5000 (WB)
Expected | apparent MW 52 kDa (inactive precursor) | 37-38 kDa (mature, active form)


Confirmed reactivity Arabidopsis thaliana
Predicted reactivity Camelina sativa, Capsella rubella, Eutrema salsugineum, Raphanus sativus Species of your interest not listed? Contact us
Not reactive in No confirmed exceptions from predicted reactivity are currently known

Application examples

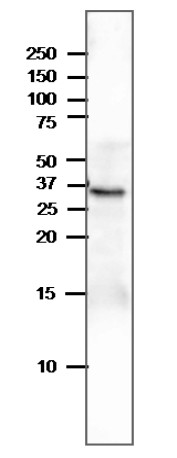

Application examples Western blot using anti-Delta VPE antibodies

Arabidopsis thaliana maturing siliques was freshly extracted to a crude extract with 2x SDS-sample buffer (+ 2ME) for SDS-PAGE and denatured with 4X SDS buffer at 95°C for 5 min. were separated on 15-20 % SDS-PAGE and blotted to PVDF membrane in wet system. Blot was blocked with 3 % skim milk/TBS-T, 1h/RT with agitation. Blot was incubated in the primary antibody at a dilution of 1: 5000 in TBS-T for 1h/RT. The antibody solution was decanted and the blot was washed 4 times for 10 min in TBS-T at RT with agitation. Blot was incubated in matching secondary antibody (anti-rabbit IgG horse radish peroxidase conjugated) diluted to 1:10 000 in for 1h/RT with agitation. The blot was washed as above and developed with a chemiluminescent detection reagent, following manufacture's recommendations.

Immunolocalisation using anti-delta VPE antibodies

Left panel: differential Interference Contrast Image
Right panel: Immunofluorescent staining
Material: developing seeds of Arabidopsis thaliana
Fixation:  7.2% (w/v) formaldehyde, 0.1% (v/v) Nonidet P-40, 10% (v/v) dimethyl sulfoxide, and 50 mM Na-phosphate buffer, pH 7.2 for 40 minutes.
Wash, 2x:  TBS-T for 5 min, incubated in TBS-T containing 5% (w/v) Cellulase Onozuka R-10 and 2% (w/v) Pectolyase Y-23 for 20 min at 30°C
Was: 2x with TBS-T
Blocking: 30 min. in 2 % BSA in TBS-T
Primary antibody: 1: 500, 40 min.
Wash: 3x5 min.  with TBS-T
Secondary antibodies: goat anti-rabbit AlexaFluor 488 conjugated
Wash: 3x 5 min. TBS-T and mounted

Additional information

Subcellular localisation is seed specific and restricted to developing seeds at 7 days after anthesis, Delta-VPE is detected at lower levels in flowers siliques, specifically in seed coats

Related products


Background Delta VPE (Vacuplar-Processing Enzyme delta-isozyme) is Asparagine specific endopeptidase that may be involved in processing of proteins targeted to vacuoles (By similarity). The enzyme is probably involved in post-translational proteolysis of seed storage proteins in the protein storage vacuole of developing seeds (PubMed:12417707, PubMed:14688293). Exhibits a caspase-1-like activity in extracellular granules. At the early stage of seed development, required for the formation of the seed coat, by regulating cell death of specific cell layers in inner integument (Nakaune et al. 2005).

Product citations

Selected references Kunieda et al. (2013). Spatiotemporal secretion of PEROXIDASE36 is required for seed coat mucilage extrusion in Arabidopsis. Plant Cell . 2013 Apr;25(4):1355-67.doi: 10.1105/tpc.113.110072. (Western blot, Arabidopsis thaliana)
Kunieda et al. (2008). NAC family proteins NARS1/NAC2 and NARS2/NAM in the outer integument regulate embryogenesis in Arabidopsis. Plant Cell. 2008 Oct;20(10):2631-42.doi: 10.1105/tpc.108.060160. (Western blot, Arabidopsis thaliana)
Nakaune et al. (2005). A vacuolar processing enzyme, deltaVPE, is involved in seed coat formation at the early stage of seed development. Plant Cell. 2005 Mar;17(3):876-87. doi: 10.1105/tpc.104.026872. (Immunofluorescence, Immunolocalisation by electron microscopy, Western blot, Arabidopsis thaliana)
