PsbI | Small subunit I of PSII (cyanobacterial)

AS10 692  |  Clonality: Polyclonal  |  Host: Rabbit  |  Reactivity: cyanobacteria

PsbI | Small subunit I of PSII (cyanobacterial) in the group Antibodies Plant/Algal  / Photosynthesis  / PSII (Photosystem II) at Agrisera AB (Antibodies for research) (AS10 692)
PsbI | Small subunit I of PSII (cyanobacterial)



DATA SHEET IN PDF

Qty:
302
How to cite this product:
Product name, number (Agrisera, Sweden)

Data sheet Product citations Protocols Add review

Product Information

Immunogen

KLH-conjugated synthetic peptide derived from Synechocystis sp. PCC 6803 PsbI sequence UniProt: Q54697

Host Rabbit
Clonality Polyclonal
Purity Serum
Format Lyophilized
Quantity 200 ĩl
Reconstitution For reconstitution add 200 ĩl of sterile water
Storage Store lyophilized/reconstituted at -20°C; once reconstituted make aliquots to avoid repeated freeze-thaw cycles. Please remember to spin the tubes briefly prior to opening them to avoid any losses that might occur from material adhering to the cap or sides of the tube.
Tested applications Western blot (WB)
Recommended dilution 1 : 5000-1 : 10 000 (WB)
Expected | apparent MW

4.3 kDa

Reactivity

Confirmed reactivity Synechocystis sp. PCC 6803
Predicted reactivity Cyanobacteria
Species of your interest not listed? Contact us
Not reactive in No confirmed exceptions from predicted reactivity are currently known

Application examples

Application examples

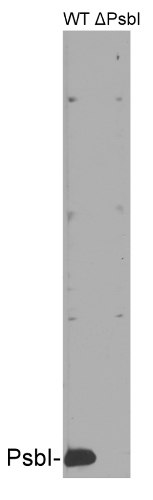

Application example



western blot detection using anti-PsbI antibodies (cyanobacterial)

Membrane fraction (0.5 µg chl), prepared from Synechocystis sp. PCC 6803, was separated on 12% SDS-PAGE and blotted in 2 hours at RT to PVDF membrane. Membrane was blocked for 1h using 0.2% tween 20 in TBS, probed with anti-PsbI (1:10 000) antibody in TTBS overnight at 8ºC and secondary anti-rabbit in TTBS (1:10000,1h, room temperature). Blot was developed for 5 min in West pico substrate and image of the blot was obtained using Fuji LAS 4000.

Courtesy Dr. Roman Sobotka, Laboratory of Photosynthesis, Trebon, Czech Republic

Additional information

Loads higher than 0,5 ĩg of chlorophyll per well are not recommended

Related products

Background

Background

The PsbI protein, previously named the 4.8-kDa protein, is encoded by the plastome. PsbI is a universal component of PSII and is highly conserved (e.g. there is 71% amino acid identicality between the Arabidopsis and Synechocystis 6803 proteins). The protein contains 36 to 38 amino acids in most species, with molecular masses ranging between 4.1 and 4.5 kDa. Synonymes: PSII-I, PSII 4.8 kDa protein

Product citations

Selected references Dobakova et. al  (2007). Role of the PsbI Protein inPhotosystem II Assembly and Repair in the Cyanobacterium Synechocystis sp. PCC 6803 Plant Physiol 145:1681-1691.
immunogen:

KLH-conjugated synthetic peptide derived from Synechocystis sp. PCC 6803 PsbI sequence UniProt: Q54697

Reconstitution: For reconstitution add 200 ĩl of sterile water
Host: Rabbit
Clonality: Polyclonal
Purity: Serum
Format: Lyophilized
Quantity: 200 ĩl
storage: Store lyophilized/reconstituted at -20°C; once reconstituted make aliquots to avoid repeated freeze-thaw cycles. Please remember to spin the tubes briefly prior to opening them to avoid any losses that might occur from material adhering to the cap or sides of the tube.
tested applications: Western blot (WB)
recommended dilution: 1 : 5000-1 : 10 000 (WB)
calculated | apparent molecular mass [kDa]:

4.3 kDa

Confirmed reactivity: Synechocystis sp. PCC 6803
predicted reactivity: Cyanobacteria
Species of your interest not listed? Contact us
not reactive in: No confirmed exceptions from predicted reactivity are currently known
Picture (footer):

Application example



western blot detection using anti-PsbI antibodies (cyanobacterial)

Membrane fraction (0.5 µg chl), prepared from Synechocystis sp. PCC 6803, was separated on 12% SDS-PAGE and blotted in 2 hours at RT to PVDF membrane. Membrane was blocked for 1h using 0.2% tween 20 in TBS, probed with anti-PsbI (1:10 000) antibody in TTBS overnight at 8ºC and secondary anti-rabbit in TTBS (1:10000,1h, room temperature). Blot was developed for 5 min in West pico substrate and image of the blot was obtained using Fuji LAS 4000.

Courtesy Dr. Roman Sobotka, Laboratory of Photosynthesis, Trebon, Czech Republic
additional information (application): Loads higher than 0,5 ĩg of chlorophyll per well are not recommended
background:

The PsbI protein, previously named the 4.8-kDa protein, is encoded by the plastome. PsbI is a universal component of PSII and is highly conserved (e.g. there is 71% amino acid identicality between the Arabidopsis and Synechocystis 6803 proteins). The protein contains 36 to 38 amino acids in most species, with molecular masses ranging between 4.1 and 4.5 kDa. Synonymes: PSII-I, PSII 4.8 kDa protein

All references: Dobakova et. al  (2007). Role of the PsbI Protein inPhotosystem II Assembly and Repair in the Cyanobacterium Synechocystis sp. PCC 6803 Plant Physiol 145:1681-1691.
