PsbI | Small subunit I of PSII

AS06 158 | Clonality: Polyclonal | Host: Rabbit | Reactivity: A.thaliana, H.vulgare

PsbI | Small subunit I of PSII in the group Antibodies Plant/Algal  / Photosynthesis  / PSII (Photosystem II) at Agrisera AB (Antibodies for research) (AS06 158)
PsbI | Small subunit I of PSII



DATA SHEET IN PDF

Qty:
302
How to cite this product:
Product name, number (Agrisera, Sweden)

Data sheet Product citations Protocols Add review

Product Information

Immunogen

KLH-conjugated synthetic peptide derived from PsbI protein of Arabidopsis thaliana P62100, AtCg00080

Host Rabbit
Clonality Polyclonal
Purity Serum
Format Lyophilized
Quantity 200 ĩl
Reconstitution For reconstitution add 200 ĩl of sterile water
Storage Store lyophilized/reconstituted at -20°C; once reconstituted make aliquots to avoid repeated freeze-thaw cycles. Please remember to spin the tubes briefly prior to opening them to avoid any losses that might occur from material adhering to the cap or sides of the tube.
Tested applications Western blot (WB)
Recommended dilution 1 : 5000 (WB)
Expected | apparent MW

4 (Arabidopsis thaliana)

Reactivity

Confirmed reactivity Arabidopsis thaliana, Hordeum vulgare
Predicted reactivity Cannabis sativa, Glycne max, Phaseolus vulgaris, Populus trichocarpa, Spinacia oleracea, Triticum aestivum, Zea mays
Species of your interest not listed? Contact us
Not reactive in

Chlamydomonas reinhardii, Synechcococcus sp. PCC7942

Application examples

Application examples

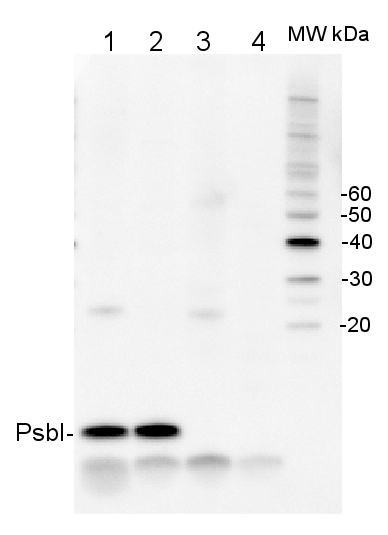

Application example

western blot detection using anti-PsbI antibodies

2 µg of total protein from (1) Arabidopsis thaliana leaf extracted with Protein Extration Buffer, PEB (AS08 300), (2) Hordeum vulgare leaf extracted with PEB, (3) Chlamydomonas reinhardtii total cell extracted with PEB, (4) Synechococcus sp. 7942 total cell extracted with PEB,were separated on 4-12% NuPage (Invitrogen) LDS-PAGE and blotted 1h to PVDF. Blots were blocked immediately following transfer in 2% blocking reagent in 20 mM Tris, 137 mM sodium chloride pH 7.6 with 0.1% (v/v) Tween-20 (TBS-T) for 1h at room temperature with agitation. Blots were incubated in the primary antibody at a dilution of 1: 10 000 for 1h at room temperature with agitation. The antibody solution was decanted and the blot was rinsed briefly twice, then washed once for 15 min and 3 times for 5 min in TBS-T at room temperature with agitation. Blots were incubated in secondary antibody (anti-rabbit IgG horse radish peroxidase conjugated) diluted to 1:50 000 in 2% blocking solution for 1h at room temperature with agitation. The blots were washed as above and developed for 5 min with chemiluminescent detection reagent according the manufacturers instructions. Images of the blots were obtained using a CCD imager (FluorSMax, Bio-Rad) and Quantity One software (Bio-Rad). Exposure time was 3 seconds.

Additional information

Related products

Background

Background

The PsbI protein, previously named the 4.8-kDa protein, is encoded by the plastome. PsbI is a universal component of PSII and is highly conserved (e.g. there is 71% amino acid identicality between the Arabidopsis and Synechocystis 6803 proteins). The protein contains 36 to 38 amino acids in most species, with molecular masses ranging between 4.1 and 4.5 kDa. Synonymes: PSII-I, PSII 4.8 kDa protein

Product citations

Selected references Hackett et al. (2017). An Organelle RNA Recognition Motif Protein Is Required for Photosystem II Subunit psbF Transcript Editing. Plant Physiol. 2017 Apr;173(4):2278-2293. doi: 10.1104/pp.16.01623.
immunogen:

KLH-conjugated synthetic peptide derived from PsbI protein of Arabidopsis thaliana P62100, AtCg00080

Host: Rabbit
Clonality: Polyclonal
Purity: Serum
Format: Lyophilized
Quantity: 200 ĩl
Reconstitution: For reconstitution add 200 ĩl of sterile water
storage: Store lyophilized/reconstituted at -20°C; once reconstituted make aliquots to avoid repeated freeze-thaw cycles. Please remember to spin the tubes briefly prior to opening them to avoid any losses that might occur from material adhering to the cap or sides of the tube.
Tested applications: Western blot (WB)
recommended dilution: 1 : 5000 (WB)
Expected | apparent MW:

4 (Arabidopsis thaliana)

Confirmed reactivity: Arabidopsis thaliana, Hordeum vulgare
predicted reactivity: Cannabis sativa, Glycne max, Phaseolus vulgaris, Populus trichocarpa, Spinacia oleracea, Triticum aestivum, Zea mays
Species of your interest not listed? Contact us
not reactive in:

Chlamydomonas reinhardii, Synechcococcus sp. PCC7942

Picture (footer):

Application example

western blot detection using anti-PsbI antibodies

2 µg of total protein from (1) Arabidopsis thaliana leaf extracted with Protein Extration Buffer, PEB (AS08 300), (2) Hordeum vulgare leaf extracted with PEB, (3) Chlamydomonas reinhardtii total cell extracted with PEB, (4) Synechococcus sp. 7942 total cell extracted with PEB,were separated on 4-12% NuPage (Invitrogen) LDS-PAGE and blotted 1h to PVDF. Blots were blocked immediately following transfer in 2% blocking reagent in 20 mM Tris, 137 mM sodium chloride pH 7.6 with 0.1% (v/v) Tween-20 (TBS-T) for 1h at room temperature with agitation. Blots were incubated in the primary antibody at a dilution of 1: 10 000 for 1h at room temperature with agitation. The antibody solution was decanted and the blot was rinsed briefly twice, then washed once for 15 min and 3 times for 5 min in TBS-T at room temperature with agitation. Blots were incubated in secondary antibody (anti-rabbit IgG horse radish peroxidase conjugated) diluted to 1:50 000 in 2% blocking solution for 1h at room temperature with agitation. The blots were washed as above and developed for 5 min with chemiluminescent detection reagent according the manufacturers instructions. Images of the blots were obtained using a CCD imager (FluorSMax, Bio-Rad) and Quantity One software (Bio-Rad). Exposure time was 3 seconds.

background:

The PsbI protein, previously named the 4.8-kDa protein, is encoded by the plastome. PsbI is a universal component of PSII and is highly conserved (e.g. there is 71% amino acid identicality between the Arabidopsis and Synechocystis 6803 proteins). The protein contains 36 to 38 amino acids in most species, with molecular masses ranging between 4.1 and 4.5 kDa. Synonymes: PSII-I, PSII 4.8 kDa protein

All references: Hackett et al. (2017). An Organelle RNA Recognition Motif Protein Is Required for Photosystem II Subunit psbF Transcript Editing. Plant Physiol. 2017 Apr;173(4):2278-2293. doi: 10.1104/pp.16.01623.
