Cyt b6 / PetB | Thylakoid membrane cytochrome b6 protein, N terminal
AS18 4169 | Clonality: Polyclonal | Host: Rabbit | Reactivity: A. thaliana, Echinochloa crus-galli , Panicum miliaceum, P. sativum, Z. mays
DATA SHEET IN PDF| Data sheet | Product citations | Protocols | Add review |
Product Information
Immunogen
KLH-conjugated peptide chosen from Arabidopsis thaliana PetB protein sequence, UniProt: P56773, TAIR: ATCG00720
Host
Rabbit
Clonality
Polyclonal
Purity
Serum
Format
Lyophilized
Quantity
50 µg
Reconstitution
For reconstitution add 50 µl, of sterile water.
Storage
Lyophilized antibody can be stored at -20°C for up to 3 years. Re-constituted antibody can be stored at 4°C for several days to weeks.
Once reconstituted make aliquots to avoid repeated freeze-thaw cycles. Please, remember to spin tubes briefly prior to opening them to avoid any losses that might occur from lyophilized material adhering to the cap or sides of the tubes.
Once reconstituted make aliquots to avoid repeated freeze-thaw cycles. Please, remember to spin tubes briefly prior to opening them to avoid any losses that might occur from lyophilized material adhering to the cap or sides of the tubes.
Tested applications
Western blot (WB)
Recommended dilution
1 : 1000 - 1: 5000 (WB)
Expected | apparent MW
24 kDa
Reactivity
Confirmed reactivity
Arabidopsis thaliana, Echinochloa crus-galli, Panicum miliaceum, Pisum sativum, Zea mays
Predicted reactivity
Acacia prainii, Angelphytum bahiense, Aristolochia promissa, Daucus glochidiatus, Dimerostemma brasilianum, Elaphandra paucipunctata, Fraxinus chiisanensis, Gossypium populifolium, Hydrangea heteromalla, Nicotiana sylvestris, Oryza sativa, Salix tetrasperma, Solanum lycopersicum, Thottea siliquosa, Triticum turgidum, Ulva flexuosa, Wedelia biflora, Vanilla aphylla
Species of your interest is not listed? Species of your interest not listed? Contact us.
Species of your interest not listed? Contact us
Species of your interest is not listed? Species of your interest not listed? Contact us.
Species of your interest not listed? Contact us
Not reactive in
Chlamydomonas reihardtii
Application examples
Application examples
Application example

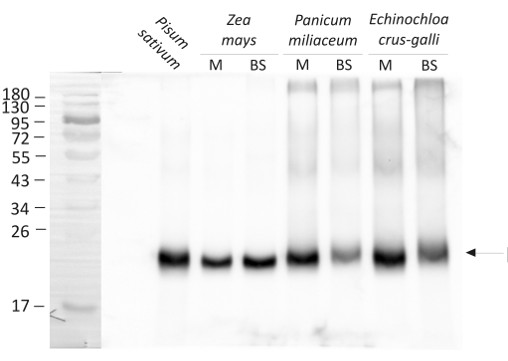

0.75 µg of chlorophyll from Pisum sativum thylakoids and from mesophyll (M) and bundle sheath (BS) thylakoids of Zea mays, Panicum miliaceum, Echinochloa crus-galli extracted with 0.4 M sorbitol, 50 mM Hepes NaOH, pH 7.8, 10 mM NaCl, 5 mM MgCl2 and 2 mM EDTA were loaded to lanes. Samples were denatured with Laemmli buffer at 75 °C for 5 min and were separated on 12% SDS-PAGE and blotted 30 min to PVDF using wet transfer. Blot was blocked with 5% milk for 2h at room temperature (RT) with agitation. Blot was incubated in the primary antibody a dilution of 1: 1000 overnight at 4°C with agitation in 1% milk in TBS-T. The antibody solution was decanted and the blot was washed 4 times for 5 min in TBS-T at RT with agitation. Blot was incubated in secondary antibody (anti-rabbit IgG HRP conjugated, from Agrisera, AS09 602) diluted to 1:25 000 in 1 % milk in TBS-T for 1h at RT with agitation. The blot was washed 5 times for 5 min in TBS-T and 2 times for 5 min in TBS, and developed for 1 min with 1.25 mM luminol, 0.198 mM coumaric acid and 0.009% H2O2 in 0.1 M Tris- HCl, pH 8.5. Exposure time in ChemiDoc System was 54 seconds.
Courtesy Dr. Wioleta Wasilewska-Dębowska, Warsaw University, Poland
0.75 µg of chlorophyll from Pisum sativum thylakoids and from mesophyll (M) and bundle sheath (BS) thylakoids of Zea mays, Panicum miliaceum, Echinochloa crus-galli extracted with 0.4 M sorbitol, 50 mM Hepes NaOH, pH 7.8, 10 mM NaCl, 5 mM MgCl2 and 2 mM EDTA were loaded to lanes. Samples were denatured with Laemmli buffer at 75 °C for 5 min and were separated on 12% SDS-PAGE and blotted 30 min to PVDF using wet transfer. Blot was blocked with 5% milk for 2h at room temperature (RT) with agitation. Blot was incubated in the primary antibody a dilution of 1: 1000 overnight at 4°C with agitation in 1% milk in TBS-T. The antibody solution was decanted and the blot was washed 4 times for 5 min in TBS-T at RT with agitation. Blot was incubated in secondary antibody (anti-rabbit IgG HRP conjugated, from Agrisera, AS09 602) diluted to 1:25 000 in 1 % milk in TBS-T for 1h at RT with agitation. The blot was washed 5 times for 5 min in TBS-T and 2 times for 5 min in TBS, and developed for 1 min with 1.25 mM luminol, 0.198 mM coumaric acid and 0.009% H2O2 in 0.1 M Tris- HCl, pH 8.5. Exposure time in ChemiDoc System was 54 seconds.
Courtesy Dr. Wioleta Wasilewska-Dębowska, Warsaw University, Poland
Additional information
Background
Background
Multi-subunit complex of cytb6/f is a crucial component for the photosynthetic electron transport chain of higher plants, green algae and cyanobacteria. This complex is catalyzing oxidation of quinols and the reduction the reduction of plastocyanin. This reaction allows to establish the proton force required for the ATP synthesis. Four major subunits build the complex: the petA gene product corresponding to a c-type cytochrome (cytf), the petB gene product corresponding to a b-type/c?-type cytochrome with three haems (cyt b6), the petD gene product (subunit IV, or suIV), and the petC gene product, corresponding to the Rieske/Iron/sulfur protein.
Product citations
Selected references
Wang et al. (2020). Post-translational coordination of chlorophyll biosynthesis and breakdown by BCMs maintains chlorophyll homeostasis during leaf development. Nat Commun. 2020; 11: 1254.
