PsaE | PSI-E subunit of photosystem I (affinity purified)

AS08 324A | Clonality: Polyclonal | Host: Rabbit | Reactivity: Arabidopsis thaliana, Hordeum vulgare

PsaE | PSI-E subunit of photosystem I (affinity purified) in the group Antibodies Plant/Algal  / Photosynthesis  / PSI (Photosystem I) at Agrisera AB (Antibodies for research) (AS08 324A)
PsaE | PSI-E subunit of photosystem I (affinity purified)



DATA SHEET IN PDF

Qty:
302
Buy 2 items of this product for 226.00 €/items
Buy 3 items of this product for 205.00 €/items
How to cite this product:
Product name, number (Agrisera, Sweden)

Data sheet Product citations Protocols Add review

Product Information

Immunogen

KLH-conjugated synthetic peptide derived from PsaE N-terminal part, conserved in di and monocots and some green algae PsaE protein (not Chlamydomonas), including Arabidopsis thaliana PSI-E A Q9S831, At4g28750 and PSI-E B Q9S714, At2g20260

Host Rabbit
Clonality Polyclonal
Purity Immunogen affinity purified serum in PBS pH 7.4.
Format Lyophilized
Quantity 50 ĩg
Reconstitution For reconstitution add 50 ĩl of sterile water
Storage Store lyophilized/reconstituted at -20°C; once reconstituted make aliquots to avoid repeated freeze-thaw cycles. Please remember to spin the tubes briefly prior to opening them to avoid any losses that might occur from material adhering to the cap or sides of the tube.
Tested applications Western blot (WB)
Recommended dilution 1 : 1000 (WB)
Expected | apparent MW

10 | 12 kDa for A. thaliana

Reactivity

Confirmed reactivity Arabidopsis thaliana, Hordeum vulgare
Predicted reactivity Chlamydomonas reinhardtii, Chlorella, Oryza sativa, Populus canadensis, Solanum lycopersicum, Spinacia oleracea, Zea mays
Species of your interest not listed? Contact us
Not reactive in No confirmed exceptions from predicted reactivity are currently known

Application examples

Application examples Application example

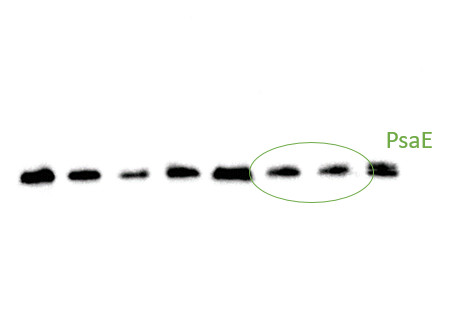

Western blot using anti-PsaE antibodies

Thylakoid membranes (10 µg of total chlorophyll) extracted freshly from Hordeum vulgare leaves with 100 mM HEPES-KOH (pH 7.5), 0.3 M sorbitol, 2 mM EDTA, and 1mM MgCl2 and denatured with a Laemmli buffer at 80°C for 5 min were separated on 12% SDS-PAGE and blotted 1 h to nitrocellulose (pore size of 0.2 um), using semi-dry transfer. Blot was blocked with 4% milk for 2 h/RT with agitation. Blot was incubated in the primary antibody at a dilution of 1:5000 (PsaE) for 1 h/RT with agitation in PBS-T. The antibody solution was decanted and the blot was rinsed briefly, then washed 3 times for 5 min in PBS-T at RT with agitation. Blot was incubated in Agrisera matching secondary antibody (anti-rabbit IgG horse radish peroxidase conjugated) diluted to 1:25000 in for 1 h/RT with agitation. The blot was washed as above and developed for 5 min with chemiluminescent detection reagent according to manufacture's recommendations. Exposure time was 30 seconds.

Courtesy Dr. Anja Liszkay, CNRS, France

Additional information

Related products

Background

Background

PsaE is a nucleus encoded subunit of the Photosystem I reaction center. It is located on the stroma side and interacts with PsaF. PsaE may be involved in Fd reduction.

Product citations

Selected references Simakawa et al. (2020). Near-infrared in Vivo Measurements of Photosystem I and Its Lumenal Electron Donors With a Recently Developed Spectrophotometer. Photosynth Res. , 144 (1), 63-72
Li et al. (2018). Modulating plant growth-metabolism coordination for sustainable agriculture. Nature. 2018 Aug 15. doi: 10.1038/s41586-018-0415-5.
Yang et al. (2017).  Tetratricopeptide repeat protein Pyg7 is essential for photosystem I assembly by interacting with PsaC in Arabidopsis. Plant J. 2017 Jun 21. doi: 10.1111/tpj.13618.
Confirmed reactivity: Arabidopsis thaliana, Hordeum vulgare
predicted reactivity: Chlamydomonas reinhardtii, Chlorella, Oryza sativa, Populus canadensis, Solanum lycopersicum, Spinacia oleracea, Zea mays
Species of your interest not listed? Contact us
not reactive in: No confirmed exceptions from predicted reactivity are currently known
All references: Simakawa et al. (2020). Near-infrared in Vivo Measurements of Photosystem I and Its Lumenal Electron Donors With a Recently Developed Spectrophotometer. Photosynth Res. , 144 (1), 63-72
Li et al. (2018). Modulating plant growth-metabolism coordination for sustainable agriculture. Nature. 2018 Aug 15. doi: 10.1038/s41586-018-0415-5.
Yang et al. (2017).  Tetratricopeptide repeat protein Pyg7 is essential for photosystem I assembly by interacting with PsaC in Arabidopsis. Plant J. 2017 Jun 21. doi: 10.1111/tpj.13618.
Picture (footer): Application example

Western blot using anti-PsaE antibodies

Thylakoid membranes (10 µg of total chlorophyll) extracted freshly from Hordeum vulgare leaves with 100 mM HEPES-KOH (pH 7.5), 0.3 M sorbitol, 2 mM EDTA, and 1mM MgCl2 and denatured with a Laemmli buffer at 80°C for 5 min were separated on 12% SDS-PAGE and blotted 1 h to nitrocellulose (pore size of 0.2 um), using semi-dry transfer. Blot was blocked with 4% milk for 2 h/RT with agitation. Blot was incubated in the primary antibody at a dilution of 1:5000 (PsaE) for 1 h/RT with agitation in PBS-T. The antibody solution was decanted and the blot was rinsed briefly, then washed 3 times for 5 min in PBS-T at RT with agitation. Blot was incubated in Agrisera matching secondary antibody (anti-rabbit IgG horse radish peroxidase conjugated) diluted to 1:25000 in for 1 h/RT with agitation. The blot was washed as above and developed for 5 min with chemiluminescent detection reagent according to manufacture's recommendations. Exposure time was 30 seconds.

Courtesy Dr. Anja Liszkay, CNRS, France

background:

PsaE is a nucleus encoded subunit of the Photosystem I reaction center. It is located on the stroma side and interacts with PsaF. PsaE may be involved in Fd reduction.
