PsbF | beta subunit of Cytochrome b559 of PSII

AS06 113 | Clonality: Polyclonal | Host: Rabbit | Reactivity: A.thaliana, P.sativum, T. aestivum

PsbF | beta subunit of Cytochrome b559 of PSII in the group Antibodies Plant/Algal  / Photosynthesis  / PSII (Photosystem II) at Agrisera AB (Antibodies for research) (AS06 113)
PsbF | beta subunit of Cytochrome b559 of PSII



DATA SHEET IN PDF

Qty:
302
How to cite this product:
Product name, number (Agrisera, Sweden)

Data sheet Product citations Protocols Add review

Product Information

Immunogen

KLH-conjugated synthetic peptide derived from plant PsbF sequences including Arabidopsis thaliana P62095, AtCg00570

Host Rabbit
Clonality Polyclonal
Purity Serum
Format Lyophilized
Quantity 200 ĩl
Reconstitution For reconstitution add 200 ĩl of sterile water
Storage Store lyophilized/reconstituted at -20°C; once reconstituted make aliquots to avoid repeated freeze-thaw cycles. Please remember to spin the tubes briefly prior to opening them to avoid any losses that might occur from material adhering to the cap or sides of the tube.
Tested applications Western blot (WB)
Recommended dilution 1 : 1000 (WB)
Expected | apparent MW

4 kDa

Reactivity

Confirmed reactivity Arabidopsis thaliana, Pisum sativum, Triticum aestivum
Predicted reactivity Cannabis sativa, Nicotiana tabacum, Pinus sylvestris, Populus tremula
Species of your interest not listed? Contact us
Not reactive in

Chlamydomonas reinhardtii, cyanobacteria

Application examples

Application examples

Application example

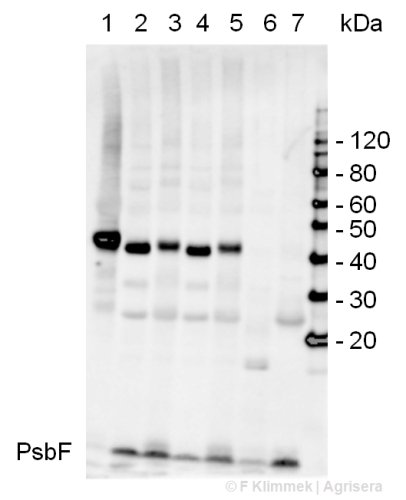

5µg protein of Arabidopsis thaliana (1) leaf, extracted with PEB (AS08 300), (2) chloroplasts (normal light), (3) thylakoids (extracted from 2), (4) chloroplasts (high light), (5) thylakoids (extracted from 4), (6) Photosystem I, and (7) BBY particles (enriched in Photosystem II) from pea were separated on 4-12% NuPage (Invitrogen) LDS-PAGE and blotted 1.5h (30V) to nitrocellulose. Filters were blocked 1h with 2% low-fat milk powder in TBS-T (0.1% TWEEN 20) and probed with AS06 113 (1:1000, 1h) and secondary anti-rabbit (1:20000, 1 h) antibody (HRP conjugated) in TBS-T containing 2% low fat milk powder. Antibody incubations were followed by washings in TBS-T (15, +5, +5, +5 min). All steps were performed at RT with agitation. Signal was detected with chemiluminescent detection reagent, using a Fuji LAS-3000 CCD (150s, high sensitivity). The PsbF protein is detected with an apparent mass of < 10 kDa
With this protocol, there is a cross-reaction with a target at ~43 kDa.

Additional information

Additional information This product can be sold containing ProClin if requested
This antibody works better on thylakoid and chloroplast fractions than on a total cell extract

Related products

Background

Background

Cytochrome b559 (Cyt b559) is encoded by the chloroplast genes psbE and psbF and is comprised of two low molecular mass polypeptides, α and ß subunits, with molecular masses of 9 and 4 kDa, respectively. The Cyt b559 is closely associated with PSII in all oxygenic photosynthetic organisms. The α and ß subunits of the Cyt b559 are components of the minimal PSII reaction center complex that is still capable of primary charge separation In summary, both PsbE and PsbF are essential components for PSII assembly, and they are probably involved in electron transport mechanisms that help to protect PSII from photodamage.

Product citations

Selected references Hackett et al. (2017). An Organelle RNA Recognition Motif Protein Is Required for Photosystem II Subunit psbF Transcript Editing. Plant Physiol. 2017
Yang-Er Chen et al. (2017). Responses of photosystem II and antioxidative systems to high light and high temperature co-stress in wheat. J. of Exp. Botany, Volume 135, March 2017, Pages 45–55.
Nishimura et al. (2016). The N-terminal sequence of the extrinsic PsbP protein modulates the redox potential of Cyt b559 in photosystem II. Sci Rep. 2016 Feb 18;6:21490. doi: 10.1038/srep21490.
Lucinski et al. (2011). Involvement of Deg5 protease in wounding-related disposal of PsbF apoprotein. Plant Physiol Biochem. 49(3):311-20.
Garcia-Cerdan et al. (2008). Antisense inhibition of the PsbX protein affects PSII integrity in the higher plant Arabidopsis thaliana. Plant Cell Physiol 50: 191-202
immunogen:

KLH-conjugated synthetic peptide derived from plant PsbF sequences including Arabidopsis thaliana P62095, AtCg00570

Reconstitution: For reconstitution add 200 ĩl of sterile water
Host: Rabbit
Clonality: Polyclonal
Purity: Serum
Format: Lyophilized
Quantity: 200 ĩl
storage: Store lyophilized/reconstituted at -20°C; once reconstituted make aliquots to avoid repeated freeze-thaw cycles. Please remember to spin the tubes briefly prior to opening them to avoid any losses that might occur from material adhering to the cap or sides of the tube.
tested applications: Western blot (WB)
recommended dilution: 1 : 1000 (WB)
calculated | apparent molecular mass [kDa]:

4 kDa

Confirmed reactivity: Arabidopsis thaliana, Pisum sativum, Triticum aestivum
predicted reactivity: Cannabis sativa, Nicotiana tabacum, Pinus sylvestris, Populus tremula
Species of your interest not listed? Contact us
not reactive in:

Chlamydomonas reinhardtii, cyanobacteria

Picture (footer):

Application example

5µg protein of Arabidopsis thaliana (1) leaf, extracted with PEB (AS08 300), (2) chloroplasts (normal light), (3) thylakoids (extracted from 2), (4) chloroplasts (high light), (5) thylakoids (extracted from 4), (6) Photosystem I, and (7) BBY particles (enriched in Photosystem II) from pea were separated on 4-12% NuPage (Invitrogen) LDS-PAGE and blotted 1.5h (30V) to nitrocellulose. Filters were blocked 1h with 2% low-fat milk powder in TBS-T (0.1% TWEEN 20) and probed with AS06 113 (1:1000, 1h) and secondary anti-rabbit (1:20000, 1 h) antibody (HRP conjugated) in TBS-T containing 2% low fat milk powder. Antibody incubations were followed by washings in TBS-T (15, +5, +5, +5 min). All steps were performed at RT with agitation. Signal was detected with chemiluminescent detection reagent, using a Fuji LAS-3000 CCD (150s, high sensitivity). The PsbF protein is detected with an apparent mass of < 10 kDa
With this protocol, there is a cross-reaction with a target at ~43 kDa.

additional information: This product can be sold containing ProClin if requested
additional information (application): This antibody works better on thylakoid and chloroplast fractions than on a total cell extract
background:

Cytochrome b559 (Cyt b559) is encoded by the chloroplast genes psbE and psbF and is comprised of two low molecular mass polypeptides, α and ß subunits, with molecular masses of 9 and 4 kDa, respectively. The Cyt b559 is closely associated with PSII in all oxygenic photosynthetic organisms. The α and ß subunits of the Cyt b559 are components of the minimal PSII reaction center complex that is still capable of primary charge separation In summary, both PsbE and PsbF are essential components for PSII assembly, and they are probably involved in electron transport mechanisms that help to protect PSII from photodamage.

All references: Hackett et al. (2017). An Organelle RNA Recognition Motif Protein Is Required for Photosystem II Subunit psbF Transcript Editing. Plant Physiol. 2017
Yang-Er Chen et al. (2017). Responses of photosystem II and antioxidative systems to high light and high temperature co-stress in wheat. J. of Exp. Botany, Volume 135, March 2017, Pages 45–55.
Nishimura et al. (2016). The N-terminal sequence of the extrinsic PsbP protein modulates the redox potential of Cyt b559 in photosystem II. Sci Rep. 2016 Feb 18;6:21490. doi: 10.1038/srep21490.
Lucinski et al. (2011). Involvement of Deg5 protease in wounding-related disposal of PsbF apoprotein. Plant Physiol Biochem. 49(3):311-20.
Garcia-Cerdan et al. (2008). Antisense inhibition of the PsbX protein affects PSII integrity in the higher plant Arabidopsis thaliana. Plant Cell Physiol 50: 191-202
